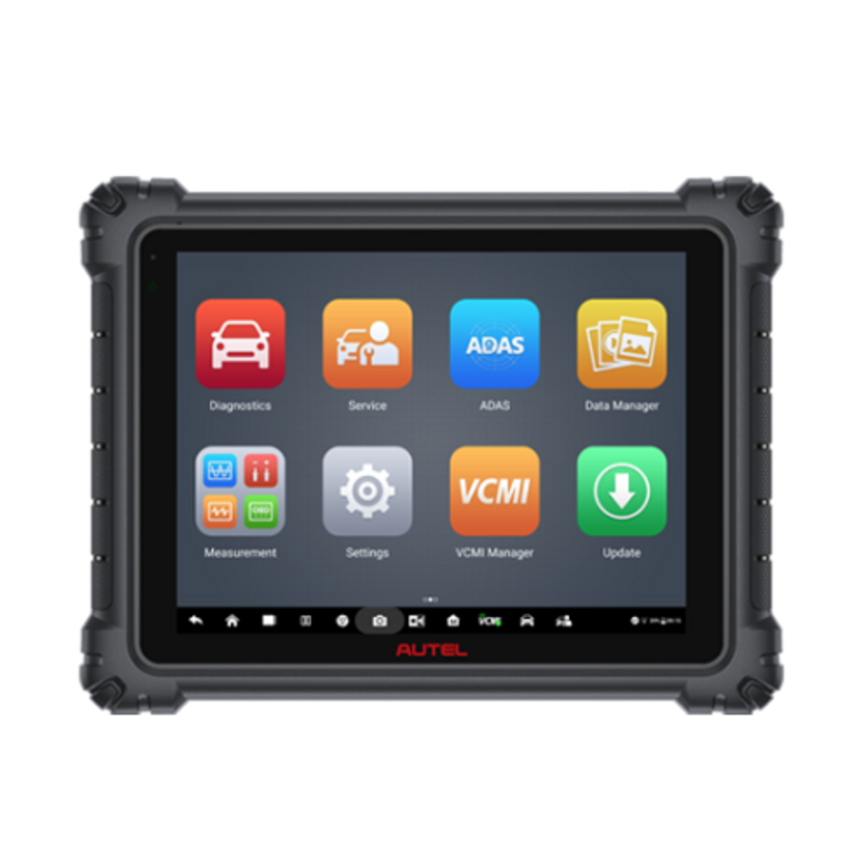

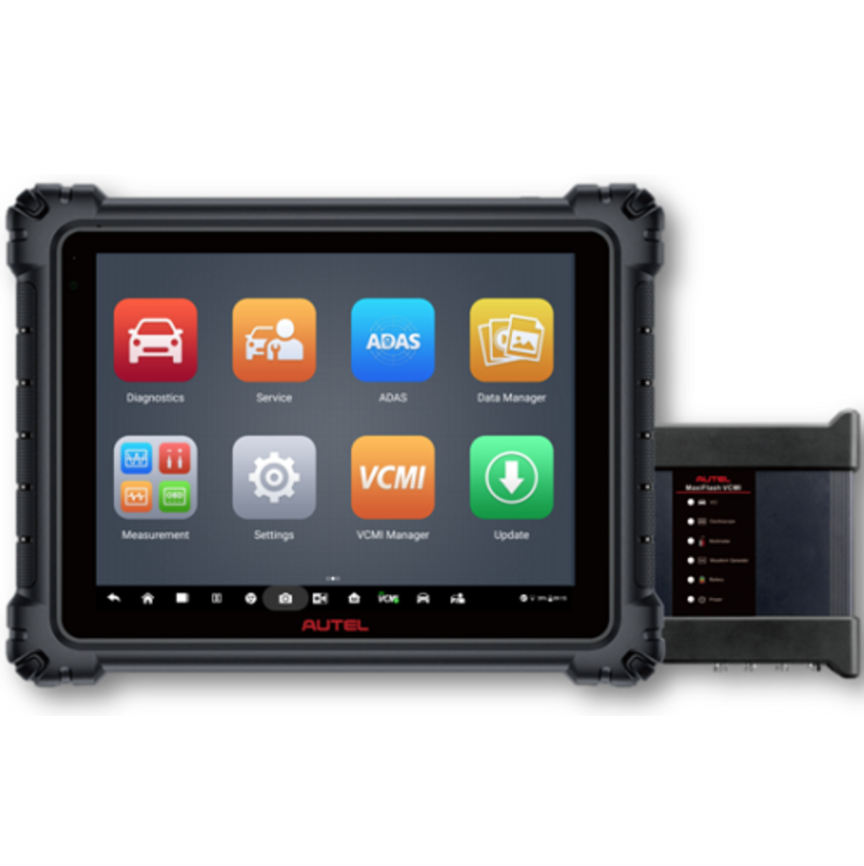

The Autel MaxiSYS Ultra Diagnostic Tablet represents the pinnacle of automotive diagnostic innovation, integrating a large 12.9-inch touchscreen with an Android system, powered by a robust Octa-core processor for rapid diagnostics. With 256GB of memory, this advanced tablet includes the MaxiFlash VCMI, a versatile 5-in-1 communication and testing tool that facilitates seamless wireless interactions between the vehicle and tablet, supporting cutting-edge DoIP, D-PDU, and Mega CAN protocols. This device excels in comprehensive diagnostics with its 4-channel oscilloscope, waveform generator, multimeter, and CanBUS testing capabilities. The MaxiSYS Ultra elevates diagnostic precision through dynamic topology module mapping and Intelligent Diagnostics, directing technicians accurately from diagnosis to repair with enriched repair data and visuals. Additionally, its extensive Oscilloscope functionalities are complemented by a substantial waveform library. Engineered for endurance, it boasts an 8-hour rechargeable Lithium battery life, enhanced with both a practical docking station and integrated front and rear cameras for detailed inspections.

FIVE-IN-ONE DEVICE:

NEW Combination Vehicle Communication and Measurement Interface

• D-PDU / J2534 / RP1210 Diagnostic Protocols Cover More Vehicle Types
• DoIP / CAN FD Protocols for High-Speed CAN Cover New Vehicle Models
• NEW Oscilloscope - Faster Bandwidth 20MHz / Sample Rate 80MS/s
• Higher 12-Bit Resolution / Larger Memory 32Mil Samples

Affordable Test Component Combination for Repair Confirmation:

• Combined Signal Detection and Signal Stimulation
• OBDII Channel Detection / DLC Pin Location and Direct Measurement
• Protocol CAN Testing / Advanced Triggering / Auto-Scale Zooming

Easier Operation of Built-In Preset Guided Tests for Faster Operation:

• Custom Probe Specification & Reference Waveform Libraries
• Saved Test Configurations / Component Tests / Data Graphs

Technical Specs:

• Large 12.9’’ Touchscreen (2732 x 2048) / Android 7.0
• 2.3GHz + 1.7GHz Octa-core Processor / 256GB Memory
• Advanced VCMI 5-In-1 Device: VCI, Oscilloscope, Multimeter, Waveform Generator, CAN BUS Check
• Oscilloscope Preset Guided & Component Tests / Waveform Library
• New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN
• Split Screen Multi-Application Function / Dual Wi-Fi Connection
• Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
• Relevant Cases: DTC Troubleshooting / Repair Tips Video Library
• Repair Assist: Guided Procedures with DTC Analysis & Fault Code Solutions
• Code-Related Technical Service Bulletins (on select vehicles) / License Plate Reader
• ScanVIN: Barcode or Text Recognition with Camera
• Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account
• Includes Docking Station, Cables, Scope Connectors, Carrying Case, 1YR Warranty & Software Subscription
• Enhanced Diagnostic Reports: PreSCAN & PostSCAN
• 18000mAh - 8hrs Continuous Use / 16MP Rear Camera & 5MP Front Camera

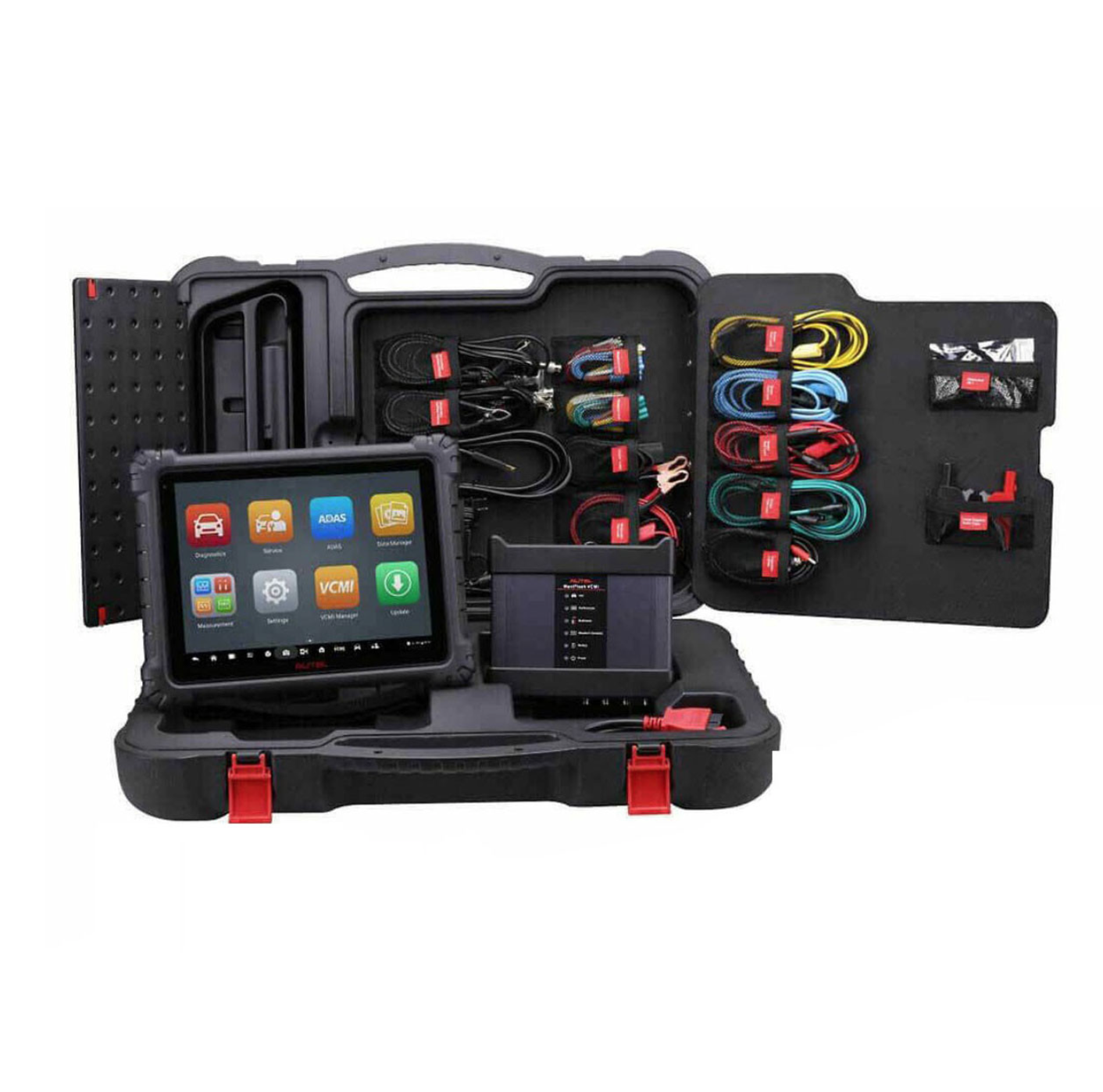

MaxiSYS Ultra Includes:

• Main Unit with Split Screen Multi-Application
• MaxiFlash VCMI
• Main Cable V2.0
• USB 2.0 Cable V2
• AC/DC Adapter(12V)
• Cigarette Lighter
• Light Fuse 6x30mm 2 PCS
• Clipper Cable
• Scope Test Lead 4 PCS
• Multimeter Test Lead 2 PCS
• Secondary Ignition Pickup 2 PCS
• Attenuator 20:1 2 PCS
• Breakout Lead 4x6 PCS
• Multimeter Probe 1x2 PCS
• Flexible Back-pinning Probe 2x2 PCS
• Back-pinning Probe - Red/Green/Blue/Yellow/Black 1x5 PCS
• Back-pinning Probe Screw 2 PCS
• Back-pinning Probe Replacement Needle 20 PCS
• Small Crocodile Clip 2x2 PCS
• Large Dolphin Clip 1x2 PCS
• Quick Reference Guide
• Packing List
• Soft Cloth
• Tool Box 177 x 102.5 x 23.5 mm
• Carrying Case 687 x 170 x 470 mm
